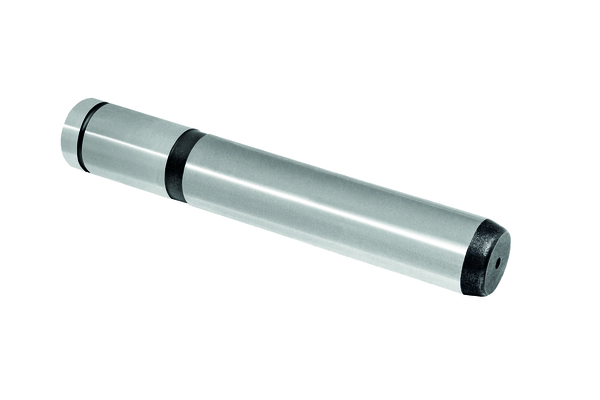

GUIDE PILLAR

Name:

GUIDE PILLAR

Ref:

CRN

MATERIALS	HARDNESS	STANDARD	HOW TO ORDER
CRN Case Hardened Steel	61-63 HRC		CRN + D1*L

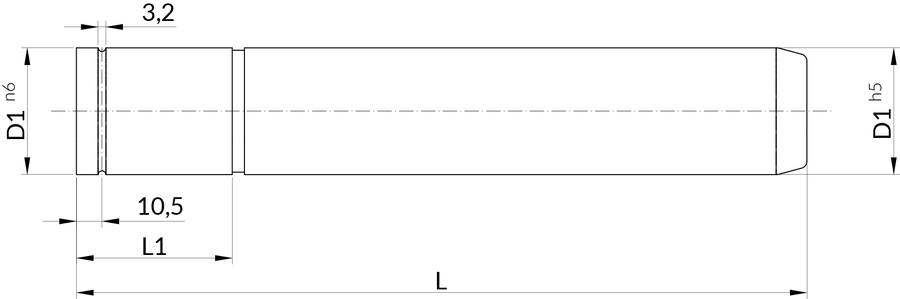

DRAWINGS

TECHNICAL DATA


CODE	D1	L1	L
	Diameter		Length
	mm	mm	mm
CRN.24x140	24	49	140
CRN.24x150	24	49	150
CRN.24x160	24	49	160
CRN.24x170	24	49	170
CRN.24x180	24	49	180
CRN.24x190	24	49	190
CRN.24x200	24	49	200
CRN.24x220	24	49	220
CRN.25x140	25	49	140
CRN.25x150	25	49	150
CRN.25x160	25	49	160
CRN.25x170	25	49	170
CRN.25x180	25	49	180
CRN.25x190	25	49	190
CRN.25x200	25	49	200
CRN.25x220	25	49	220
CRN.30x160	30	54	160
CRN.30x170	30	54	170
CRN.30x180	30	54	180
CRN.30x190	30	54	190
CRN.30x200	30	54	200
CRN.30x220	30	54	220
CRN.30x240	30	54	240
CRN.30x260	30	54	260
CRN.30x280	30	54	280
CRN.32x160	32	54	160
CRN.32x170	32	54	170
CRN.32x180	32	54	180
CRN.32x190	32	54	190
CRN.32x200	32	54	200
CRN.32x220	32	54	220
CRN.32x240	32	54	240
CRN.32x260	32	54	260
CRN.32x280	32	54	280
CRN.40x170	40	59	170
CRN.40x180	40	59	180
CRN.40x190	40	59	190
CRN.40x200	40	59	200
CRN.40x220	40	59	220
CRN.40x240	40	59	240
CRN.40x260	40	59	260
CRN.40x280	40	59	280
CRN.40x300	40	59	300
CRN.40x320	40	59	320
CRN.42x170	42	59	170
CRN.42x180	42	59	180
CRN.42x190	42	59	190
CRN.42x200	42	59	200
CRN.42x220	42	59	220
CRN.42x240	42	59	240
CRN.42x260	42	59	260
CRN.42x280	42	59	280
CRN.50x200	50	64	200
CRN.50x220	50	64	220
CRN.50x240	50	64	240
CRN.50x260	50	64	260
CRN.50x280	50	64	280
CRN.50x300	50	64	300
CRN.52x200	52	64	200
CRN.52x220	52	64	220
CRN.52x240	52	64	240
CRN.52x260	52	64	260
CRN.52x280	52	64	280
CRN.52x300	52	64	300

DRAWINGS 2

DOWNLOAD

Bt_CRN.pdf

INFORMATION

We also produce other dimensions and materials
