Gas Spring

GAS SPRING KE

Maximum force, piston seal + SKUDO.

Maximum force and minimum encumbrance for cylinders with piston seal. Unique construction design for cylinders with piston seal, an expression of the state of the art of Special Springs research. The KE series guarantees maximum service life and safe use thanks to the presence, as standard, of SKUDO (active protection against contaminants), OSAS (overstroke active safety), USAS (uncontrolled speed active safety) and OPAS (overpressure active safety) as standard. The only cylinders with piston seal connectable in system as standard, without the use of adapters, with encumbrance height saving of - 20 mm. Ideal for EASY MANIFOLD applications in the standard version

Products

MODELØ BodyStroke CuInitial ForceOSASUSASOPASSKUDO SW
mmmmdaN
KE400256 - 50425----+ info
KE750326 - 50740+ info
KE1000386 - 501060+ info
KE1800506 - 501885+ info
KE30006310 - 652945+ info
KE47007510 - 654675+ info

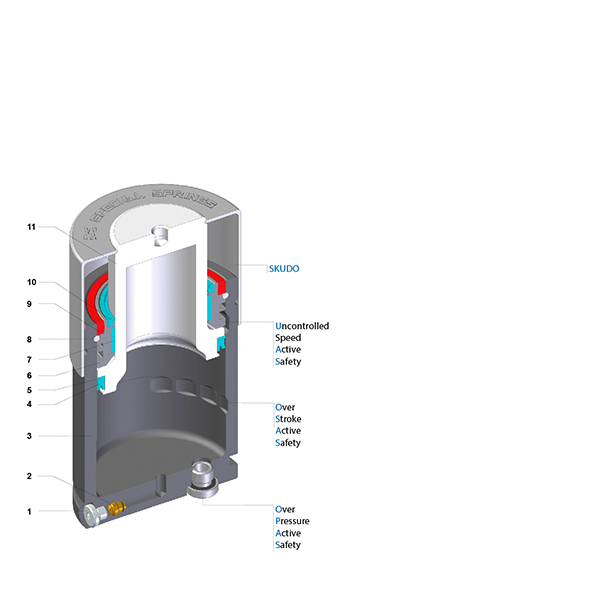

Information

  • 1. Plug
  • 2. Valve
  • 3. Body
  • 4. Piston seal
  • 5. Back-up ring
  • 6. Bush
  • 7. Guide ring
  • 8. Retaining ring
  • 9. Outer seal
  • 10. Rod wiper
  • 11. Rod (nitrited super finished)
