NITRIDED BLADE EJECTOR PIN

Name:

NITRIDED BLADE EJECTOR PIN

Ref:

EXPLN-EXPLP


MATERIALS

HARDNESS

STANDARD

HOW TO ORDER

Surface: ≥ 950 HV Core: 45 ± 5 HRC Head: 45 ± 5 HRC DIN 1530 FA/ ISO 8693 EXPLN + A x B x L
EXPLP + A x B x L
Surface: ≥ 950 HV Core: 45 ± 5 HRC Head: 45 ± 5 HRC

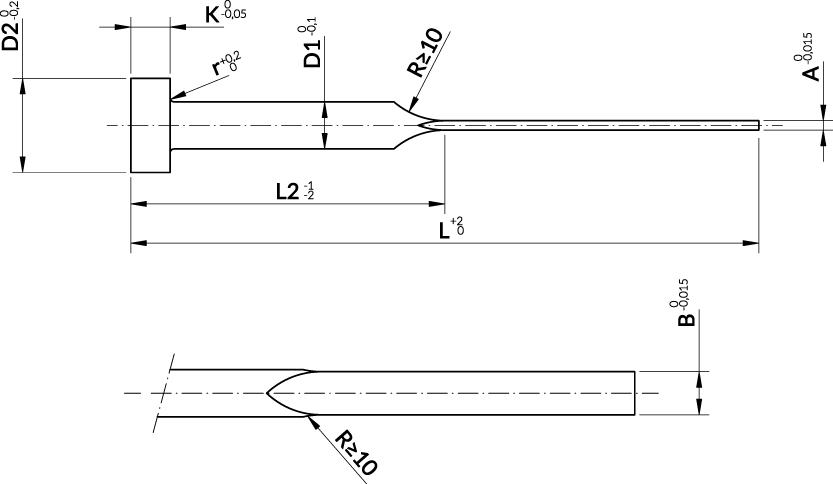

DRAWINGS

TECHNICAL DATA

TECHNICAL DATA 2

DRAWINGS 2

DOWNLOAD

INFORMATION

Maximum working temperature: 550ºC
