Name:
GUIDE PILLAR WITH COLLAR
Ref:
CE
|
MATERIALS |
HARDNESS |
STANDARD |
HOW TO ORDER |
|---|---|---|---|
| 61-63 HRC | CE + D1 + L2 |

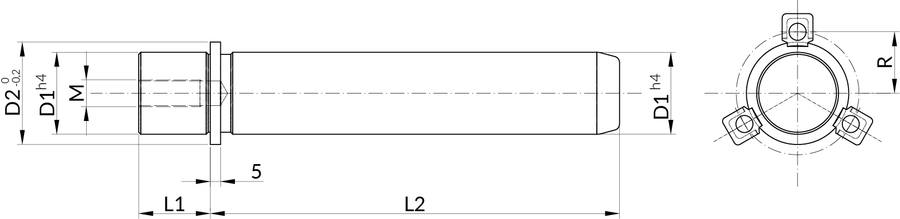

DRAWINGS
TECHNICAL DATA
| {{dato.replace("[SYBTYPE]", sybtype)}} {{dato}} |
TECHNICAL DATA 2
| {{dato.replace("[SYBTYPE]", sybtype)}} {{dato}} |
DRAWINGS 2
DOWNLOAD
INFORMATION
Assembly recommendation with RTE washer or clamp BRE
D≤25: 3x BRE + TCI M6x15
D>25: 3x BRE 8 / BREA 8 + TCI M8x20
D1= 80mm with M10 thread on tip
