GAS SPRING

Name:

GAS SPRING

Ref:

RV20000

MATERIALS	HARDNESS	STANDARD	HOW TO ORDER
RV20000			RV20000 + Cu

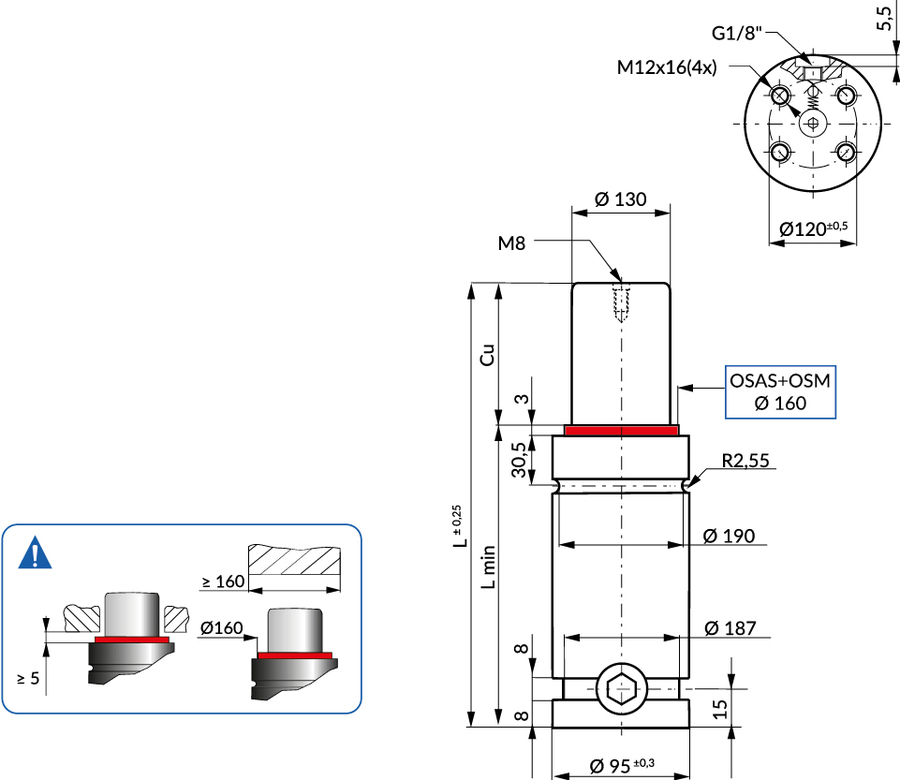

DRAWINGS

TECHNICAL DATA

	N2	0 - 80 ºC	ΔP ±0,33 %/ºC	P max 150 bar	P min 20 bar	S 132,73 cm2	SPM 20 - 100 (at 20 ºC)	Max Speed 1,8 m/s	Maintenace kit 39BMRV20000A
CODE	Cu	L	L min	F0	*F1i	**F1p	V0	W	PED
		Lenght		Initial force	End force	End force		Weight
	mm	mm	mm	daN	daN	daN	cm3	Kg
RV20000.19	19	148	129	19910 ± 5% 150 bar + 20 ºC	27,636	32,207	1,047	21.58	•
RV20000.25	25	160	135	19910 ± 5% 150 bar + 20 ºC	29,099	34,490	1,215	22.29	•
RV20000.32	32	174	142	19910 ± 5% 150 bar + 20 ºC	30,485	36,688	1,411	23.12	•
RV20000.38	38	186	148	19910 ± 5% 150 bar + 20 ºC	31,467	38,266	1,580	23.84	•
RV20000.50	50	210	160	19910 ± 5% 150 bar + 20 ºC	33,024	40,801	1,916	25.26	•
RV20000.63	63	236	173	19910 ± 5% 150 bar + 20 ºC	34,290	42,889	2,280	26.80	•
RV20000.75	75	260	185	19910 ± 5% 150 bar + 20 ºC	35,196	44,401	2,617	28.22	•
RV20000.80	80	270	190	19910 ± 5% 150 bar + 20 ºC	35,519	44,943	2,757	28.81	•
RV20000.100	100	310	210	19910 ± 5% 150 bar + 20 ºC	36,574	46,724	3,317	31.19	•
RV20000.125	125	360	235	19910 ± 5% 150 bar + 20 ºC	37,526	48,345	4,018	34.16	•

DRAWINGS 2

DOWNLOAD

Ct_RV12000.pdf

INFORMATION

*Isothermal end force at 100% Cu
**Polytrophic end force at 100% Cu
