GAS SPRING

Name:

GAS SPRING

Ref:

RV350

MATERIALS	HARDNESS	STANDARD	HOW TO ORDER
RV350			RV350 + Cu

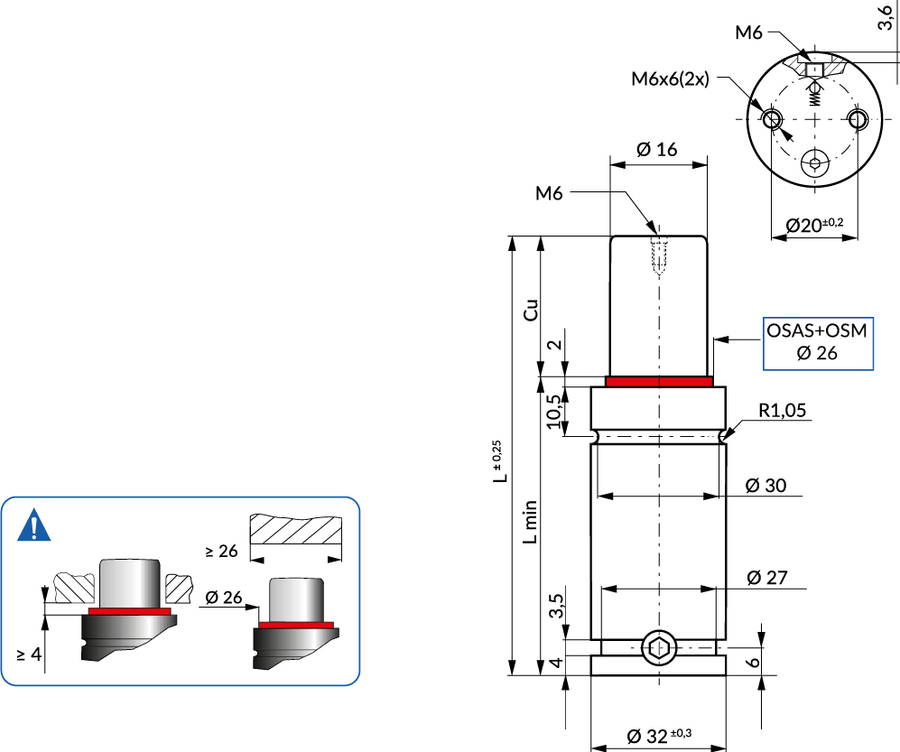

DRAWINGS

TECHNICAL DATA

	N2	0 - 80 ºC	ΔP ±0,33 %/ºC	P max 180 bar	P min 20 bar	S 2,01 cm2	SPM 20 - 100 (at 20 ºC)	Max Speed 1,8 m/s	Maintenace kit Not available
CODE	Cu	L	L min	F0	*F1i	**F1p	V0	W	PED
		Lenght		Initial force	End force	End force		Weight
	mm	mm	mm	daN	daN	daN	cm3	Kg
RV350.10	10	50	40	360 ± 5% 180 bar + 20 ºC	531	607	7.70	0.17	•
RV350.13	13	56	43	360 ± 5% 180 bar + 20 ºC	544	627	9.50	0.18	•
RV350.16	16	62	46	360 ± 5% 180 bar + 20 ºC	554	641	11.20	0.19	•
RV350.19	19	68	49	360 ± 5% 180 bar + 20 ºC	561	651	13	0.19	•
RV350.25	25	80	55	360 ± 5% 180 bar + 20 ºC	571	665	16.60	0.21	•
RV350.32	32	94	62	360 ± 5% 180 bar + 20 ºC	578	676	20.70	0.24	•
RV350.38	38	106	68	360 ± 5% 180 bar + 20 ºC	583	683	24.30	0.26	•
RV350.50	50	130	80	360 ± 5% 180 bar + 20 ºC	589	691	31.40	0.30	•
RV350.63	63	156	93	360 ± 5% 180 bar + 20 ºC	593	697	39.10	0.34	•
RV350.75	75	180	105	360 ± 5% 180 bar + 20 ºC	595	701	46.30	0.38	•
RV350.80	80	190	110	360 ± 5% 180 bar + 20 ºC	596	702	49.20	0.39	•
RV350.100	100	230	130	360 ± 5% 180 bar + 20 ºC	599	706	61.10	0.46	•
RV350.125	125	280	155	360 ± 5% 180 bar + 20 ºC	606	717	74.90	0.54	•

DRAWINGS 2

DOWNLOAD

Ct_RV350.pdf

INFORMATION

*Isothermal end force at 100% Cu
**Polytrophic end force at 100% Cu
