GUIDE PILLAR WITH COLLAR

Name:

GUIDE PILLAR WITH COLLAR

Ref:

CEJ


MATERIALS

HARDNESS

STANDARD

HOW TO ORDER

61-63 HRC DIN 9825-4 - ISO 9182-5 CEJ + D1*L2

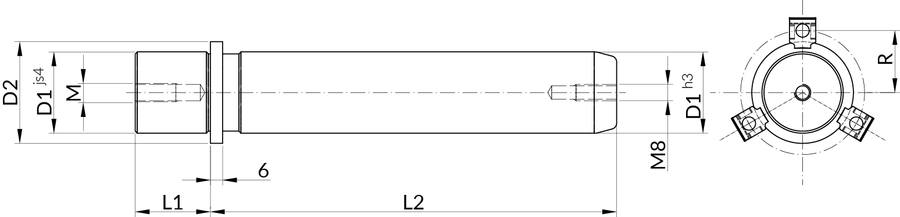

DRAWINGS

TECHNICAL DATA

TECHNICAL DATA 2

DRAWINGS 2

DOWNLOAD

INFORMATION

Assembly recommendation with RTI washer or clamp BREI 6:
D<38: 3x BREI 6 + TCI M6x15
D≥38: 4x BREI 6 + TCI M6x15
