Nom du produit:

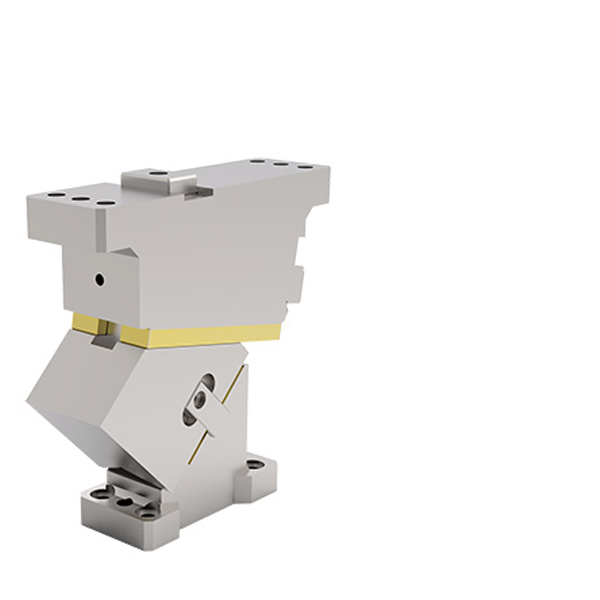

AERIAL CAM UNIT
Ref:
CSCM
|
TYPE DE MATÉRIEL |
DURETÉ |
NORMES |
FORMULAIRE DE COMMANDE |
|---|---|---|---|
| Code + W x θ |
PLANS
CARACTÉRISTIQUES TECHNIQUES
| {{dato.replace("[SYBTYPE]", sybtype)}} {{dato}} |
CARACTÉRISTIQUES TECHNIQUES 2
| {{dato.replace("[SYBTYPE]", sybtype)}} {{dato}} |
LES PLANS (AVEC LE GRADE)
TÉLÉCHARGEMENTS
INFORMATIONS
Mounting Method:
Blank: Drawin Shape
K: For W=50 and W=65 Key width 20 mm assemble
For W=80 and W=150 Key width 32 mm assemble
TK: Center key, Cross key assemble
N12: Dowel pin finished hole for Ø12
Working Face (option)
Blank: as drawing
SD: The mount surface is extended forward in the range of from 10 to 60 mm (at increments of 10mm)
WC: The mount width is changed to 65 mm for W: 50 and to 100 mm for W:80.
